Description

Digirig cable for Yaesu transceivers using the standard GX16 8 pin mic connector.
Use this cable only as a fallback option if no accessory connection is available.

• coiled cables keep things nice and tidy by preventing knots and kinks
• provides audio in, audio out and PTT control
• about 24″ relaxed, 72″ fully stretched
• shielded and RF choked with ferrite beads on both ends to prevent RFI
• premium quality materials and craftsmanship

This cable is compatible with Digirig Mobile 1.6+ (any configuration) as well as other Digirig Models.
When using with Digirig Mobile plug 3.5mm TRRS jack into black socket labeled “audio”.

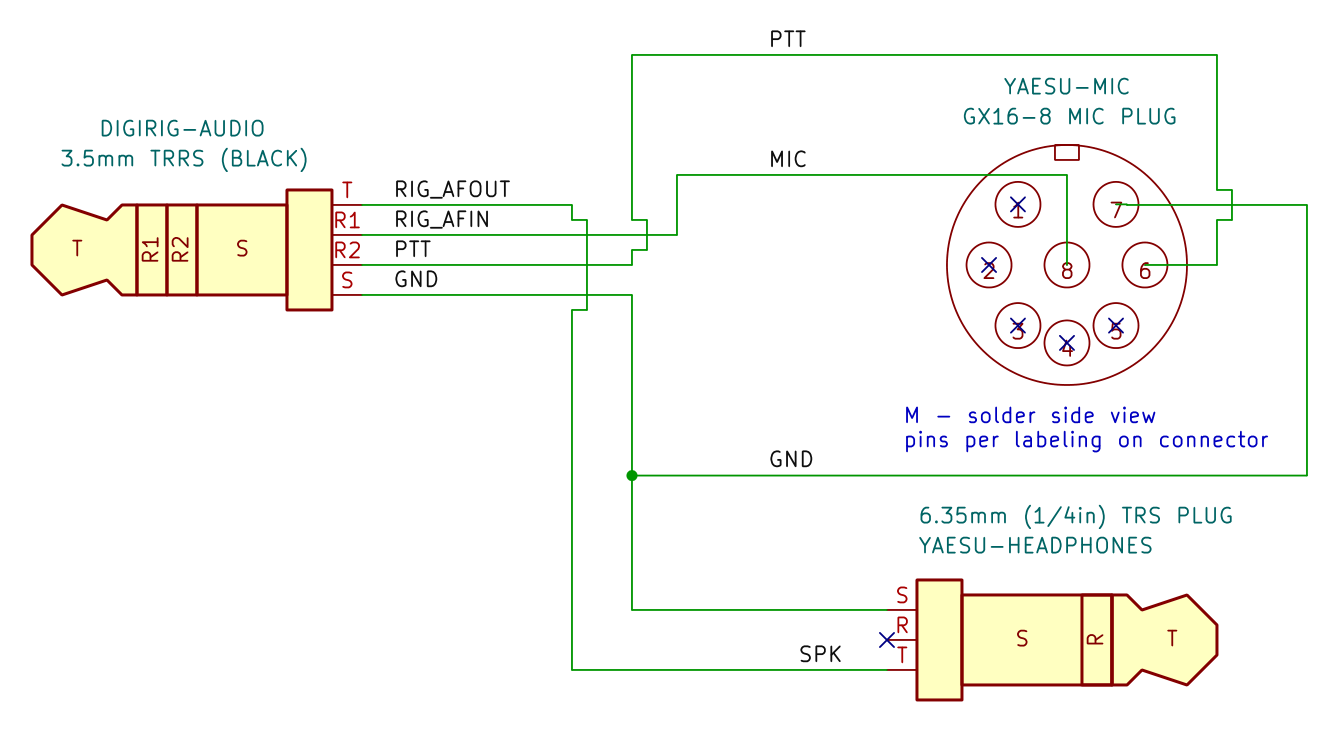

⚠ GX-16 mic connector is common in ham radio with different brands using different pinouts. The cable in this listing uses following pinout:

– pin 6 – PTT
– pin 7 – GND
– pin 8 – MIC

You can confirm the compatibility by checking the continuity from pin #7 to radio’s chassis.
