Description

This cable is compatible with Digirig Mobile 1.6+ (any configuration) as well as other Digirig Models.
When using with Digirig Mobile plug 3.5mm TRRS jack into black socket labeled “audio”.

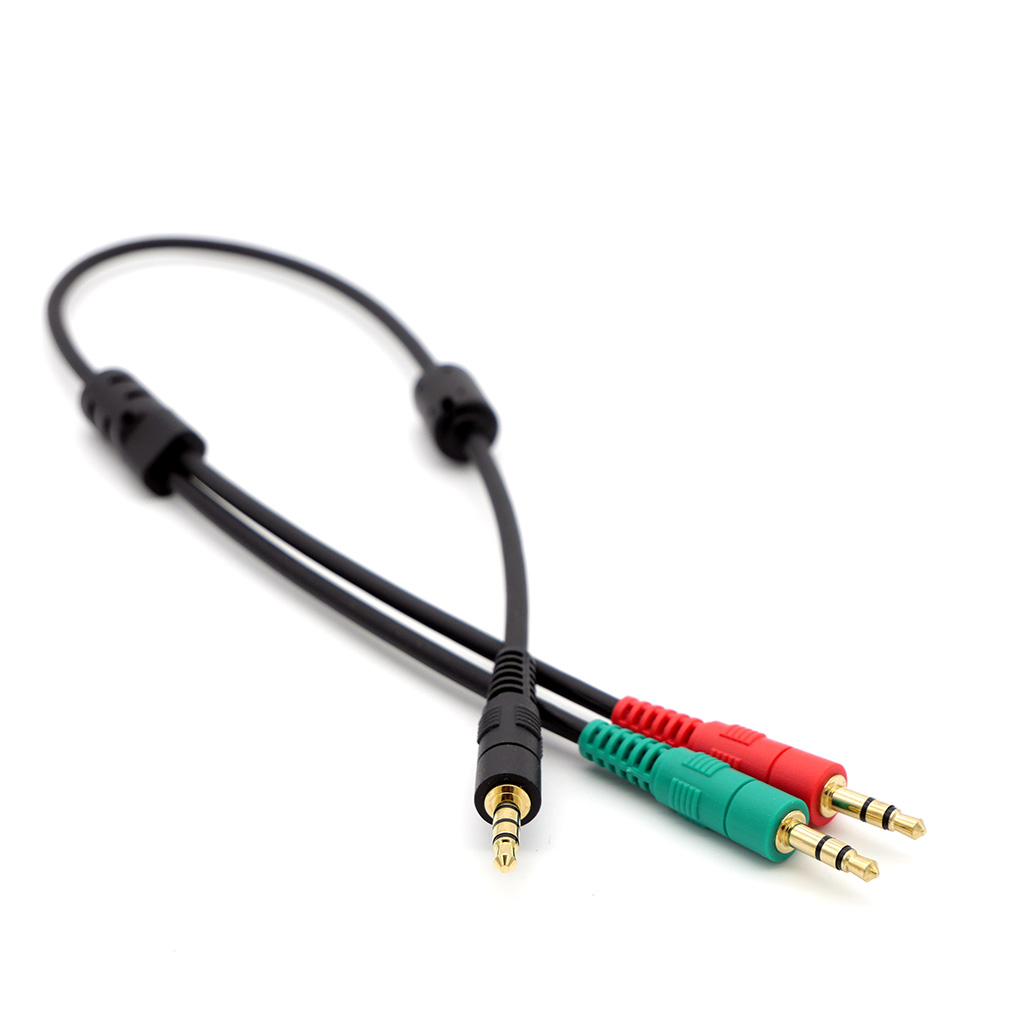

• cable works with uSDX, (tr)uSDX transceivers using separate 3.5mm TRS connectors for mic+PTT and headphones

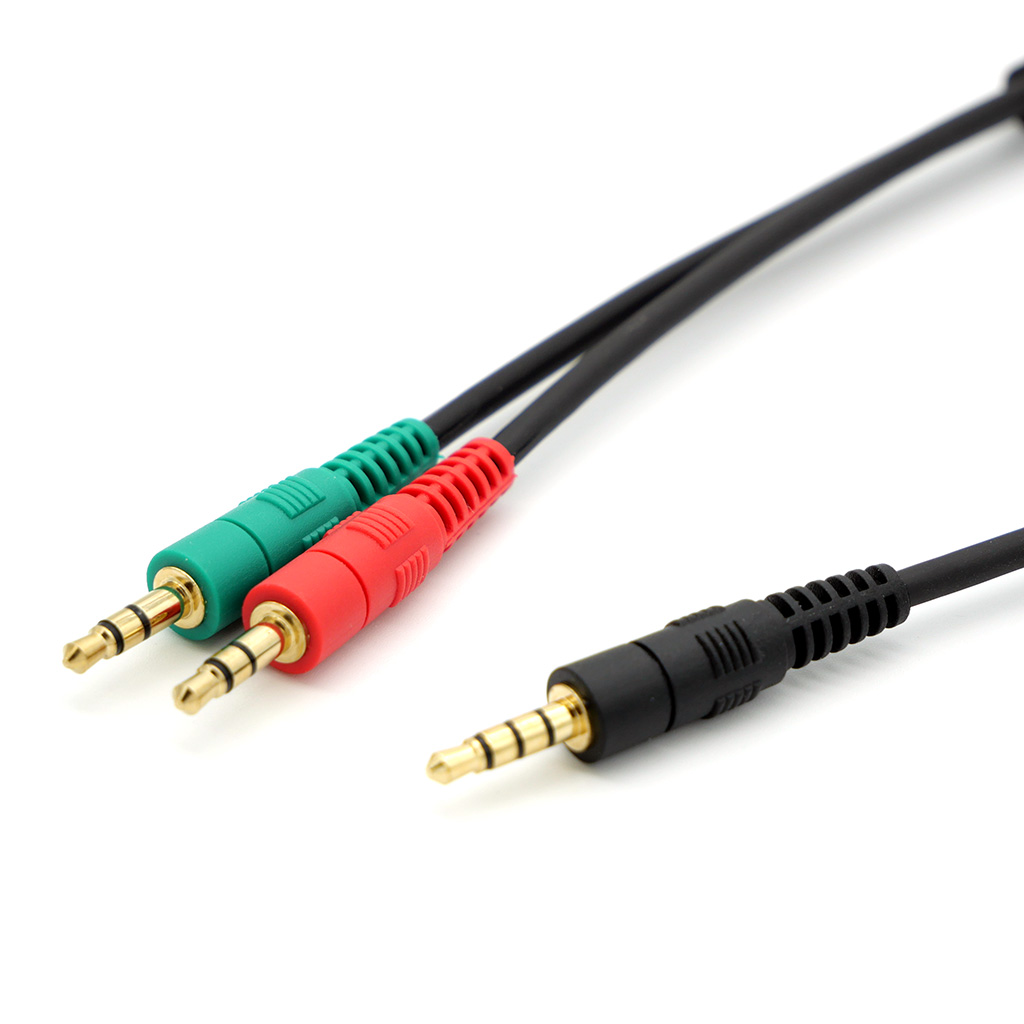

• connect straight black jack into Digirig’s audio socket, red jack into radio’s mic socket and green jack into the headphones socket
• data cable allows digital modes and packet radio protocols as FT8, FT4, SSTV, APRS, Echolink, Allstar etc
• great for working satellites (e.g. APRS and SSTV)
• data cable combines audio and PTT control, plugs into Digirig’s audio socket
• shielded and RF choked with ferrite beads on both ends to prevent RFI
• premium quality materials and craftsmanship

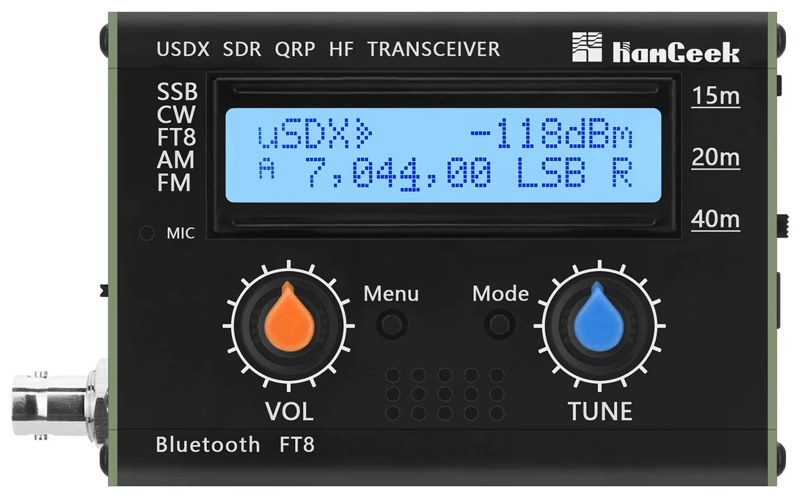

Do not use with the HamGeek uSDX transceiver pictured below. The audio output in this radio is driven by a bridged amplifier (BTL) with differential lines wired to tip and ring of the headphones’ socket (non-standard). The current variant of this cable connects tip and ring of the jack (normal for mono) which in this case causes an amp overload with the possibility of the damage.
